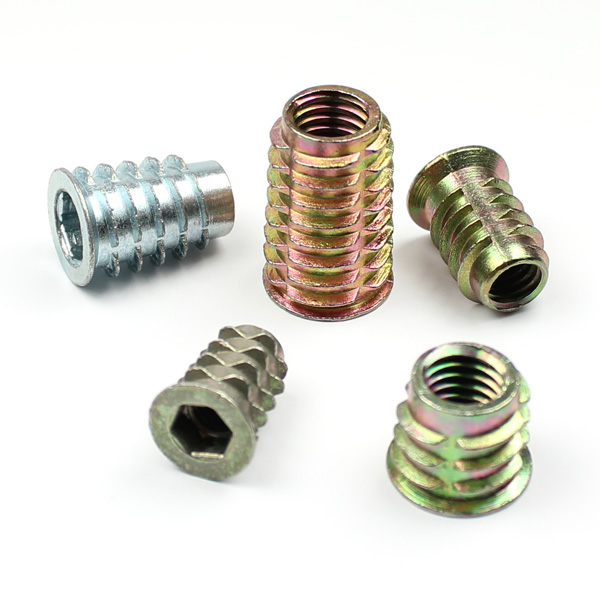

D-Nuts

D-Nuts.

Supplied in packs of 12.

Available in M6, M8, M10 and to varying depths.  (Other pack sizes available, if you require a larger quantity, please contact our sales team)

D-Nuts provides a strong, permanent thread for wood and wood based materials.  Simply drill a pilot hole and screw in the D-Nut with a hex key.  The leg will then fit the matching internal thread.  The unique external thread ensures a positive locking and offers strong resistance against the D-Nuts coming out due to torsion or vibration.  This D-Nut insert incorporates a flange which prevents splitting of covered surfaces and driving the D-Nut in too far.

Recommended Size of hole required to fit D-Nut

M6 = 8mm

M8 = 10mm

M10 = 12mm

If there is any further advice you may require regarding T-Nuts and wooden feet/legs, please do not hesitate to contact us on 01384639990.
